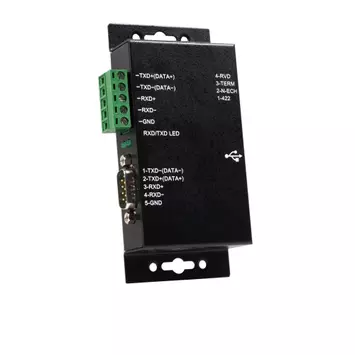

StarTech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/Isolation

This USB to RS422/RS485 serial Converter connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.

The converter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.

The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter.

Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.

• Supports RS-485 and RS-422 serial interfaces
• USB Bus powered, no external power adapter required

Features

• Compatible with both USB 2.0 and USB 1.1
• Optical Isolation and Surge Protection (2500 Vrms)
• Provides one RS422/485 port while powering the device through USB
• RS-485 mode supports Auto Transceiver Turn Around (ATTA)
• RS422/485 Baud rate up to 921.6 Kbps
• Supports 4-wire RS422 and 2-wire RS485 applications

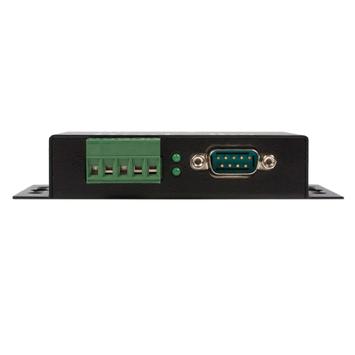

• Supports DB9 and terminal block connector

Applications

• An ideal solution for your expanding serial applications
• Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
• Security (UPS control, access key panels, video cameras, card readers)
• POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
• Hospital (monitoring equipment, nurses' stations)
• Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
• Hospitality/Restaurant (credit card/debit card reader, serial printers)

Technical Specifications

Se produsentens nettside for mer informasjon.
