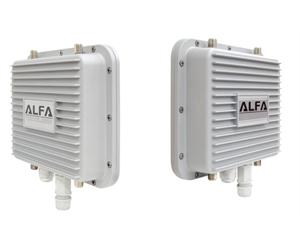

Alfa Network MatrixPro Wireless Access Point The MatrixPro is a dual-band concurrent outdoor turnkey solution. It operates on 2.4 GHz and 5GHz supporting 802.11a/b/g/n MIMO 2x2 standard allowing to cover large area networks and provide intelligent broadband services for users. With WDS point to point and WDS point to multi-point wireless bridge to save infrastructure investments. Supporting Gigabit 802.3af PoE allow MatrixPro to be powered by a PoE switch remotely. Software Features Wireless Operation modes: AP mode, WDS Point to Point, WDS Point to Multi-Point VAP support up to 16 SSIDs Transmit power adjustable IEEE 802.11h DFS/DFS2 and automatic TPC Traffic Control for each SSID Dynamic Channel Selection for noisy environment Rate Selection to disable low data rate access Client connection preemption ( n> ag >b) in case service capability is full Auto-Channel Selection Security WEP 64/128-bits WPA / WPA2 WPA / WPA2 (PSK) over WDS Secure SSH, Telnet, SSL, HTTPS Access control list RADIUS authentication EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, EAP-SIM, EAP-AKA SSID broadcast disable Network Management IPv4 and IPv6 dual stack support Industrial CLI, Telnet, SSH, HTTP and HTTPs SNMP V1, V2, V3 Software upgrade by TFTP, FTP or HTTP Configuration file backup and restore by TFTP or FTP System Information – AP status, Station status, event logs Dual Image SNTP Scheduling Rebooting Radius Accounting Specifications Hardware Spec. CPU: Atheros AR9344 ( 560MHz) Standards: IEEE 802.11a/b/g/n 2.4GHz and 5GHz IEEE 802.3, IEEE 802.3u, IEEE 802.3ab IEEE 802.3af PoE IEEE 802.11h WiF Multimedia (WMM) Wireless Distribution System (WDS) Interface: 1x 10/100/1000Base-T Gigabit PoE port 2x System LED 1x Reset Button 2x 2.4GHz N type Connector 2x 5GHz N type Connector Flash / SDRAM: 16M/64M Temperature: -40°C ~ 70°C Humidity: 5%~95% (Non-condensing) Power: 802.3af Standard PoE Power Consumption: 10.56W Dimension: 269 x 239 x 68 mm Weight: TBD Enclosure: IP67 waterproof certificated Radio Spec. Frequency: 2400 ~ 2485 MHz 5150 ~ 5825 MHz Data Rates: 802.11b: up to 11 Mbps 802.11a/g: up to 54 Mbps 802.11n: up to 300 Mbps TX Power: 2.4 GHz: 27 dBm +/- 2 dBm 5 GHz: 27 dBm +/- 2 dBm RX Sensitivity: 1 Mbps: -96 (2.4 GHz) 6 MBps: -96 (2.4 GHz); -95 (5 GHz) 11 Mbps: -93 (2.4 GHz) 54 Mbps: -81 (2.4 GHz); -81 (5 GHz) MCS 0: HT20: -96, HT40: -92 (2.4 GHz); HT20: -95, HT40: -92 (5 GHz) MCS 7: HT20: -78, HT40: -75 (2.4 GHz); HT20: -78, HT40: -74 (5 GHz) MCS 15: HT20: -75, HT40: -71 (2.4 GHz); HT20: -74, HT40: -70 (5 GHz) Flere detaljer Vis mindre
