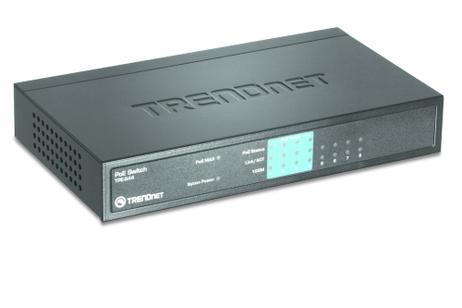

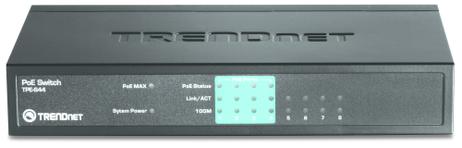

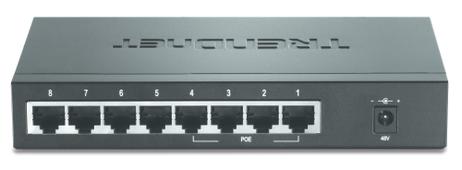

8-Port 10/100Mbps PoE Switch TPE-S44 (Version A1.0R) Reduces equipment cost by delivering data and power over existing network cables 4 PoE and 4 standard 10/100Mbps ports Flow Control for Full-Duplex mode TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure IEEE 802.3af Power over Ethernet (PoE) Standard Compliant 8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports Built-in 4 PoE Ports (Port 1 ~ Port 4) Supports PoE Power Maximum 15.4 watts for each POE port Supports PoE Powered Device (PD) classification identify Full Wire-Speed Non-Blocking Reception and Transmission Store and Forward Switching Method 96Kbytes RAM Data Buffer and 1K entries MAC Address Table Extensive Diagnostic LED´s on the Front Panel IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode 5-year limited warranty Hardware Standard IEEE 802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3af Power over Ethernet Network Media 10Mbps: Cat 3,4,5 Unshielded Cable 100Mbps: Cat 5, 5E, 6 Unshielded Cable Protocol / Topology CSMA/CD ; Star Ports 4 x 10/100Mbps Auto-MDIX POE Ports (1~4)4 x 10/100Mbps Auto-MDIX Fast Ethernet Ports (5 ~8) Data Transfer Rate Ethernet: 10/20Mbps (half/full duplex) Fast Ethernet: 100/200Mbps (half/full duplex) RAM Buffer / Filtering 96 Kbytes / 1K entry per device Power 48V DC 0.8A External Power Adapter Diagnostic LEDs Per Unit: Power, Power MAX Per Port: Link/Activity, Speed PoE: PoE Status, Link/Activity, Speed Power Consumption 6.3 watts max (no PD Device connected) 36.3 watts max (with 30w PoE Device connected) Temperature Operating: 0° ~ 40°C (32° ~ 104°F) Storage: -10° ~ 70°C (14° ~ 158°F) Humidity 10%- 90% (non-condensing) Dimensions 171 x 98 x 29mm (6.7 x 3.7 x 1.1in.) Weight 430g (13.8oz.) Certification FCC, CE PoE Power over Ethernet Power budget: 30 watts (max) Up to 15.4 watts per Port; PD classification Identify PoE Over Current Protection; PoE Circuit Sorting Protection PoE Power on RJ-45 pin 3,6 for Power+ and pin 1,2 for Power- Flere detaljer Vis mindre
