StarTech 4 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2324I) - seriell adapter - USB 2.0 - RS-232 x 4

Name: StarTech - 4 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2324I) - seriell adapter - USB 2.0 - RS-232 x 4
Brand: StarTech
SKU: 5172572
Price: 1585.00 NOK
Availability: InStock

ekskl. mva

1 268,-

Legg i handlevogn

20+ Leverandørlager (sendes normalt etter 4-6 arbeidsdager)

Beskrivelse

Spesifikasjoner

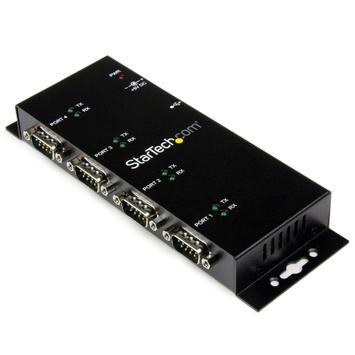

4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable

ICUSB2324I

The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.

USB to 4-Port Straight-Through RS232 Serial Adapter
Rugged metal construction
Wall-mountable, with included DIN Rail clips
COM retention: COM Port assignments maintained across reboot
Baud Rate up to 921.6 Kbps
Powered by an available USB port - no external power adapter required

Warranty Information
Warranty	2 Years
Hardware
Ports	4
Bus Type	USB 2.0
Port Style	External Hub
Chipset ID	FTDI FT2232H
Connector(s)
Connector Type(s)	1 - USB B (4 pin) Female
	4 - DB-9 (9 pin; D-Sub) Male
Performance
Max Baud Rate	921.6 Kbps
Maximum Data Transfer Rate	921.6Kbps
Serial Protocol	RS-232
Data Bits	7, 8
FIFO	256 Bytes
Parity	Odd, Even, Mark, Space, None
Stop Bits	1, 2
Software
OS Compatibility	Windows® 8 (32/63bit), 7 (32/64), Vista(32/64), XP(32/64), 2000, CE Windows® Server 2008 R2, 2003(32/64), 2000 Mac OS 10.x Linux 2.4.x/ 2.6.x
Physical Characteristics
Enclosure Type	Steel
Color	Black
Product Length	5.9 in [150 mm]
Product Width	2.6 in [66.5 mm]
Product Height	1 in [26 mm]
Product Weight	15.9 oz [450 g]
Indicators
LED Indicators	4 - Each, Tx/Rx Activity indicators
Power
Power Adapter Included	USB Powered
Environmental
Humidity	5~95% RH
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Packaging Information
Shipping (Package) Weight	1.1 lb [0.5 kg]

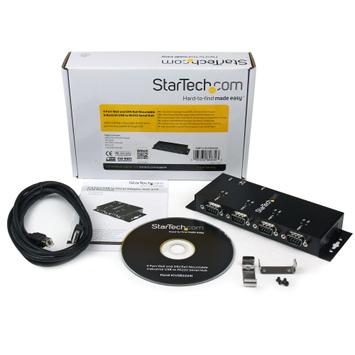

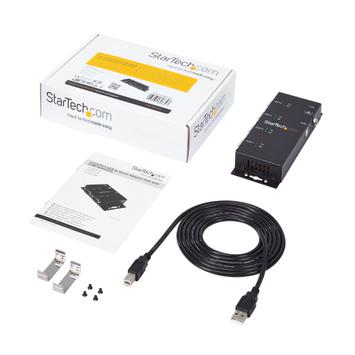

What's in the Box
Included in Package	1 - USB to RS-232 Serial Adapter
	1 - DIN rail kit
	1 - 6 ft USB A to B cable
	1 - Driver CD
	1 - Instruction Manual

Tilkoblingsevne
Antall porter	4
Vertsgrensesnitt	USB 2.0 Type-B
Grensesnitt (hub)	Seriell
RS-232-port	4
Egenskaper
Produktfarge	Sort
Kroppsmateriale	Stål
LED-indikatorer	Aktivitet
Energihåndtering
Strømkildetype	USB
Strømpluggtype	Type M
Systemkrav
Støttede Windows operativsystemer	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Støttede Mac operativsystemer	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Støttede Linux operativsystemer	Ja
Støttede server-operativsystemer	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Andre støttede operativsystemer	Windows XP Embedded
Vekt og dimensjoner
Bredde	59 mm
Dybde	1788 mm
Høyde	23 mm
Vekt	300 g
Datainnpakking
Antall per pakke	1 stykker
Pakkebredde	216 mm
Pakkedybde	152 mm
Pakkehøyde	50 mm
Pakkevekt	518 g
Emballasjeinnhold
Kabler inkludert	USB
Bruksanvisning	Ja
DIN-skinnesett medfølger	Ja
Drivere medfølger	Ja
Miljømessige forhold
Driftstemperatur (T-T)	0 - 55 °C
Oppbevaringstemperaturomåde (Celsius)	-20 - 85 °C
Relativ luftfuktighet under drift (H-H)	5 - 95%
Ytelse
Databiter	7, 8
Stoppbiter	1, 2
Paritetsbit	Even, Mark, Nei, Odd, Verdensrommet
FIFO (først inn, først ut)	256 B
Baud-hastighet	921,6 Kbit/s
Gjennomsnittstid mellom feil (MTBF)	282713,5 timer
Bærekraft
Bærekraftsamsvar	Ja
Logistikk data
Masterkassens (ytterkassens) bredde	432 mm
Masterkassens (ytterkassens) lengde	518 mm
Masterkassens (ytterkassens) høyde	264 mm
Produkter per masterkasse (ytterkasse)	25 stykker
Harmonisert system (HS)-kode	84719000
Tekniske detaljer
Samsvarssertifikat	CE, RoHS
Andre funksjoner
Brikkesett	FTDI - FT4232HL

Spesifikasjonene nedenfor er hentet inn fra en 3. parts leverandør (Icecat). Vi tar forbehold om feil eller avvik i spesifikasjonene. Oppdager du feil, må du gjerne kontakte oss.
