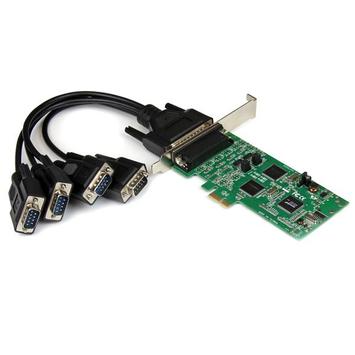

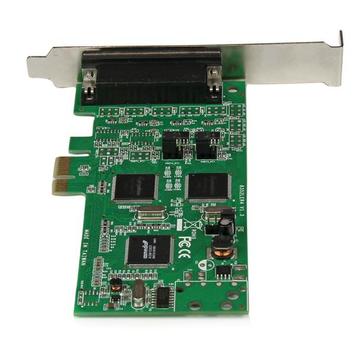

StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter (PEX4S232485)
Varenr.:
PEX4S232485
EAN:
0065030849357

StarTech 4 Port PCI Express PCIe Serial Combo Card - seriell adapter - PCIe - 4 porter

ekskl. mva
1 476,80
5+ Leverandørlager (sendes normalt etter 4-6 arbeidsdager)
Frakt fra 71,20
100% norsk nettbutikk
Beskrivelse

4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485

PEX4S232485

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

  • 4 port (2 x RS232, 2 x RS422/485) serial combo card
  • RS232 data transfer rates up to 460 Kbps
  • Supports 2-Wire / 4-Wire RS485 modes
  • 256-byte deep FIFO per transmitter and receiver
  • Standard and low-profile bracket included
  • Compliant with PCI-Express Specification 1.0a
  • Supports PCI Power Management 1.1

Warranty Information
Warranty Lifetime
Hardware
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID SystemBase - SB16C1052PCI
Interface Serial
Port Style Dongle (Included)
Ports 4
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 4 - DB-9 (9 pin; D-Sub) Male
Performance
Data Bits 5, 6, 7, 8
FIFO 256 Bytes
Flow Control None, Xon/Xoff, RTS/CTS
Max Baud Rate 460.8 Kbps
Parity None, Odd, Even, Space, Mark
Serial Protocol RS-232/422/485
Stop Bits 1, 1.5, 2
Supported Protocols RS-232, RS-422, RS-485 2-wire / 4-wire
Software
OS Compatibility Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows® Server 2008 R2, 2003(32/64)
Linux Kernel 2.6.x
Physical Characteristics
Product Height 2.7 in [69 mm]
Product Length 5.3 in [134 mm]
Product Weight 2.4 oz [67.4 g]
Product Width 0.6 in [14 mm]
Environmental
Humidity 20~80% RH
Operating Temperature 0°C to 100°C (32°F to 212°F)
Storage Temperature 0°C to 150°C (32°F to 302°F)
Packaging Information
Shipping (Package) Weight 13.8 oz [390 g]
What's in the Box
Included in Package 1 - PCI Express Serial Combo Card

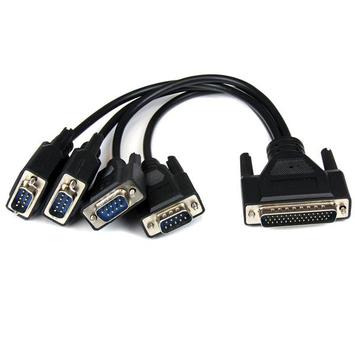

1 - Breakout Cable
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
