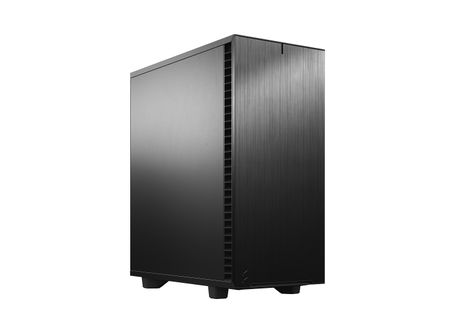

Fractal Design Define 7 Compact Solid Black

Specifications

• 3.5"/2.5" Universal drive brackets
  2
• Dedicated 2.5" drive brackets
  2 trays included, 4 positions total
• Expansion slots
  7
• Front ports
  1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button
• Total fan mounts
  7x 120 or 4x 140 mm and 2x 120 mm
• Front fan
  3x 120 or 2x 140 mm, (1x Dynamic X2 GP-14 included)
• Top fan
  2x 120 or 2x 140 mm
• Rear fan
  1x 120 mm, (1x Dynamic X2 GP-12 included)
• Bottom fan
  1x 120 mm (requires removal of HDD cage)
• Dust filters
  Top, 2x front, full length bottom
• Fixed velcro straps
  Yes
• Cable routing grommets
  Yes
• Captive thumbscrews
  HDD brackets, SSD brackets, PSU bracket
• Left side panel
  Industrial sound-damped steel
• Right side panel
  Industrial sound-damped steel

Compatibility

• Motherboard compatibility
  ATX / mATX / Mini-ITX
• Power supply type
  ATX
• PSU max length
  200 mm (with HDD cage and front fan)
• GPU max length
  341 mm (360 mm without front fan)
• CPU cooler max height
  169 mm
• Front radiator
  Up to 360/280 mm (max 145 mm width)
• Top radiator
  Up to 240 mm
• Rear radiator
  120 mm
• Bottom radiator
  120 mm (requires removal of HDD cage)
• Cable routing space
  17-28 mm

Dimensions

• Case dimensions (LxWxH)
  427 x 210 x 474 mm
• Case dimensions w/o feet/protrusions/screws
  415 x 210 x 451 mm
• Package dimensions (LxWxH)
  536 x 310 x 521 mm
• Net weight
  8.61 kg
• Package weight
  10.87 kg
• Volume
  39.3 liters

Other

• Package contents
  Define 7 Compact, Accessory box, User manual, Ventilated top panel
• EAN
  7340172702160
• UPC
  843276102166
• JAN
  4537694275712
• Product code
  FD-C-DEF7C-01
