StarTech Dual 4K 60Hz Monitor Thunderbolt™ 3 Dock - PCIe M.2 Slot and SD Reader
Connect dual UHD 4K 60Hz monitors: DisplayPort and Thunderbolt 3 USB-C (may require adapter)
Easy to set up and ready to go with no driver installation required
Connect USB devices with 3x USB ports - 1x USB-C (10Gbps) with 3A charging and 2x USB-A (5Gbps) ports with Fast-Charge

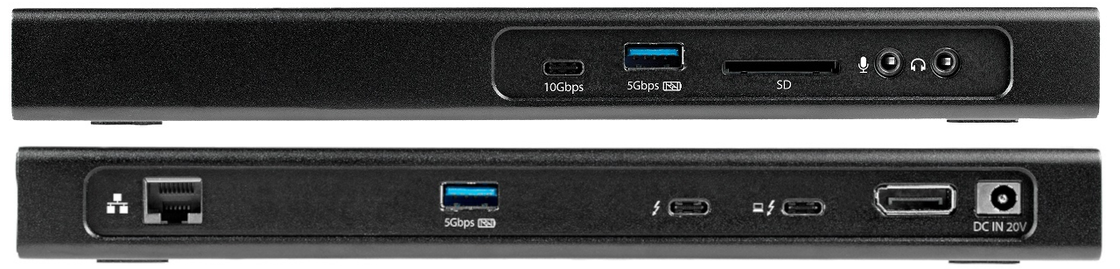

2 x Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female
1 x DisplayPort (20 pin) Female
1 x USB Type-C (24 pin) USB 3.0 (5Gbps) Female
1 x SD Slot Female
1 x M.2 (NVMe, M-Key, PCIe x4) Female
1 x USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
1 x USB Type-A (9 pin) USB 3.0 Female
1 x RJ-45 Female
1 x 3.5 mm Mini-Jack (3 Position) Female
1 x 3.5 mm Audio Female
This compact Thunderbolt™ 3 dock is built for productivity, transforming your Thunderbolt 3 laptop into a dual-4K workstation with up to 40Gbps of throughput. The high- performance dock features a PCIe M.2 SSD slot for enhanced data storage, three USB ports, an SD card reader, a Gigabit Ethernet port, a downstream Thunderbolt 3 port for daisy-chaining, plus 85W Power Delivery.
Create a Dual-4K 60Hz Workstation
Great for Ultra HD tasks, the dual-4K docking station supports 4K resolution on two monitors:
1x DisplayPort + 1x Thunderbolt 3 USB-C display (4096 x 2160p @60Hz)
USB-C to DP cable or USB-C video adapter may be required
1x 5K monitor at 60Hz
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Add Data Storage
The Thunderbolt 3 dock’s built-in PCIe M.2 SSD enclosure supports transfer speeds up to 1500MB/s with the addition of a PCIe M.2 SSD for ultra-fast data access, enhanced storage, and application buffering and caching.
Fast SD Card Access
Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The dock’s SD slot supports SD 4.0 and UHS-II with transfer speeds up to 270MB/s.
Connect Your Devices
Connect peripherals with three USB ports - one USB-C port (10G) with up to 3A charging and two USB-A ports (5G) with Fast-Charge and Sync.
The GbE port (with PXE Boot and WoL support) provides reliable wired network access.
85W Power Delivery
Using a single cable, the Thunderbolt 3 dock provides up to 85W of Power Delivery charging.
