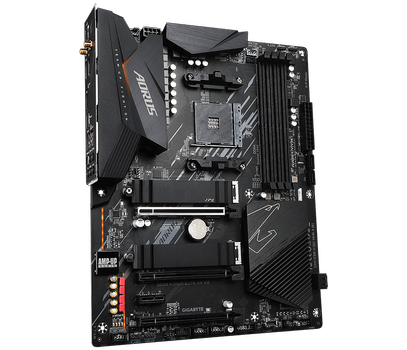

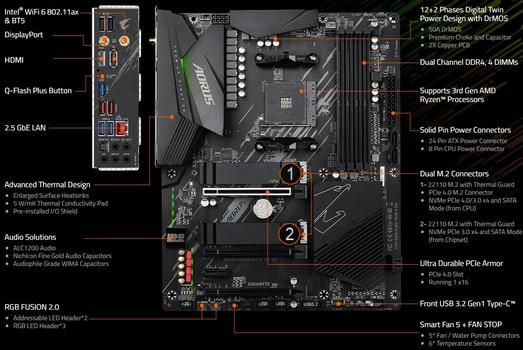

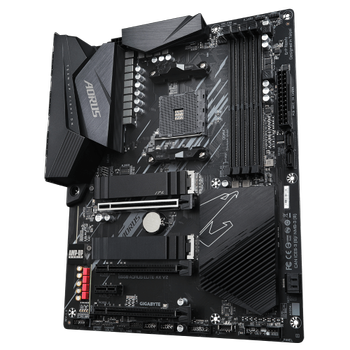

Gigabyte B550 AORUS ELITE AX V2, ATX, AM4, Wi-Fi 6, 2.5GbE LAN, 4x DDR4, 2x M.2, PCIe 4.0 x16, 6x SATA3, 1x Front USB-C, 2x USB3.1, 5x USB3.0 (B550 AORUS ELITE AX V2)

Gigabyte B550 AORUS ELITE AX
V2, ATX, AM4, Wi-Fi 6, 2.5GbE LAN, 4x DDR4, 2x M.2, PCIe 4.0 x16, 6x SATA3, 1x Front USB-C, 2x USB3.1, 5x USB3.0

Støtter AMD AM4 Ryzen 3000- og 5000-serie
Plass til 4x DDR4 4266MHz RAM (Max. 128GB)
PCI Express 4.0
Wi-Fi 6 (802.11ax) + Bluetooth 5

1 460,80

ekskl. mva

Lagerstatus: Ingen på lager for øyeblikket.

Gi beskjed når varen er på lager

1 460,80

ekskl. mva

Varenr.: B550 AORUS ELITE AX V2

EAN: 4719331809904

Beskrivelse

Spesifikasjoner

Tekniske detaljer

Gigabyte B550 AORUS ELITE AX V2

Se produsentens nettside for mer informasjon.

Prosessor
Prosessorprodusent AMD
Prosessorstøpsel AM4
Kompatible prosessorserier AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Maksimalt antall SMP-prosessorer 1
Støttede prosessorkontakter AM4
Minne
Støttede minnetyper DDR4-SDRAM
Antall minnespor 4
Minnesportype DIMM
Minnekanaler Tokanals
ECC-kompatibilitet ECC & ikke-ECC
Støttede minneklokkehastigheter 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Støttet minneklokkehastighet (maks.) 4733 MHz
Maksimalt internminne 128 GB
Ubufret minne Yes
Maksimalt internminne per spor 32 GB
Lagringskontroller
Støttet lagrings drive type HDD & SSD
Støttede lagringsgrensesnitt M.2, SATA III
Antall støttede HDDer 4
Antall lagringsdrivere som støttes 6
RAID-støtte Yes
RAID-nivåer 0, 1, 10
Grafikk
Støtter parallellprosesseringsteknologi Støttes ikke
Maksimal oppløsning 5120 x 2880 piksler
HDCP Yes
DirectX-versjon 12.0
Interne tilslutninger
USB 2.0-tilkoblinger 2
USB 3.2 Gen 1 (3.1 Gen 1)-kontakter 2
USB 3.2 Gen 2 (3.1 Gen 2)-kontakter 0
Antall SATA III-tilkoblinger 4
Lydtilkobling på fremsiden Yes
Frontpanelkontakt Yes
ATX strømtilkobling (24-pin) Yes
CPU viftetilkobling Yes
Antall CPU-viftekontakter 1
Antall understellsviftetilkoblinger 3
EPS strømtilkobling (8-pin) Yes
Antall EPS-strømkontakter (8-pinners) 1
TPM-tilkobling Yes
12V strømkontakt Yes
Antall vannpumpekontakter 4
RGB LED pin header Yes
Antall RGB LED-pinnehoder 5
Tilslutningsporter
Antall USB 2.0-porter 2
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter 3
Antall USB 3.2 Gen 1 (3.1 Gen 1) Type-C-porter 0
Antall USB 3.2 Gen 2 (3.1 Gen 2) Type-A-porter 2
Antall USB 3.2 Gen 2 (3.1 Gen 2)Type-C-porter 0
Antall ethernets-/bredbåndstilkoblinger (RJ-45) 1
Antall VGA (D-Sub)-porter 0
Antall HDMI-porter 1
HDMI-versjon 2.1
Antall DVI-D-porter 0
Antall DisplayPorts 1
DisplayPort-versjon 1.4
Hodetelefonutganger 1
Line-in Yes
Mikrofon, linje-inn-støpsel Yes
S/PDIF-utport Yes
WiFi-AP antennestøpsel 2
Nettverksbygging
Ethernet/bredbåndsforbindelse Yes
Ethernet-grensesnittype 2.5 Gigabit Ethernet, Raskt Ethernet, Gigabit Ethernet
LAN-kontroller Realtek RTL8125
Wi-Fi Yes
Beste Wi-Fi-standard Wi-Fi 6E (802.11ax)
Wi-Fi-standarder 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN-kontrollermodell Intel Wi-Fi 6E AX210
Bluetooth Yes
Bluetooth-versjon 5.3
Egenskaper
Komponent for PC
Hovedkort formfaktor ATX
Hovedkort-chipsettfamilie AMD
Systemkort kretsoppsett AMD B550
Lydbrikke Realtek ALC897
Lyd-utgang kanaler 7.1 kanaler
Produktfarge Sort
PC-ytelsesovervåkning Vifte, Temperatur, Spenning, Water cooling
Form for nedkjøling Passiv
Strømkildetype ATX
Støttede Windows operativsystemer Windows 10 x64, Windows 11 x64
Utvidelsesspor
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x)-spor 1
Antall M.2 (M)-spor 2
1. M.2 største nøkkelstørrelse 22110
1. M.2 høyeste PCI Express-generasjon 4.0
2. M.2 største nøkkelstørrelse 22110
2. M.2 høyeste PCI Express-generasjon 3.0
BIOS
BIOS-type UEFI AMI
BIOS minnestørrelse 128 Mbit
ACPI-versjon 5.0
Clear CMOS-pinner Yes
Desktop Management Interface (DMI)-versjon 2.7
System management BIOS (SMBIOS)-versjon 2.7
Logistikk data
Opprinnelsesland China
Produkter per (indre) fraktkasse 1 stykker
Battery
Batterivekt 3 g
Litiumvekt per batteri 0,07 g
Antall battericeller 1
Batteriteknologi Lithium-Manganese Dioxide (LiMnO2)
Batteritype CR2032
Datainnpakking
Pakkebredde 335 mm
Pakkedybde 270 mm
Pakkehøyde 80 mm
Pakkevekt 1,89 kg
Vekt og dimensjoner
Bredde 305 mm
Dybde 244 mm
Høyde 35 mm
Emballasjeinnhold
Batterier medfølger Yes
Antenne inkludert Yes
Skruer inkludert Yes
Forhåndsinstallert programvare Norton® Internet Security (OEM version) LAN bandwidth management software
Andre funksjoner
Vekt 1,12 kg
Tekniske detaljer
Garantiperiode 3 år

Spesifikasjonene nedenfor er hentet inn fra en 3. parts leverandør (Icecat). Vi tar forbehold om feil eller avvik i spesifikasjonene. Oppdager du feil, må du gjerne kontakte oss.

CPU
CPU
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
(Please refer "CPU Support List" for more information.)
Chipset
Chipset
1. AMD B550
Memory
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. AMD Ryzen™ 5000 series processors:
  Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 3rd Gen AMD Ryzen™ Processors:
  Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
4. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
  Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Onboard Graphics
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
Audio
1. Realtek^® ALC1200 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Wireless Communication module
Intel^® Wi-Fi 6 AX200
1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.
Expansion Slots
Expansion Slots
1. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  - 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
  - Supporting PCIe 3.0 x2 mode
3. 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
  - Supporting PCIe 3.0 x1 mode
4. 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
  - Supporting PCIe 3.0 x1 mode
Storage Interface
Storage Interface
1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  - New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
2. 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  - Supporting SATA and PCIe 3.0 x4/x2 SSDs
3. 4 x SATA 6Gb/s connectors, integrated in the Chipset:
  - Support for RAID 0, RAID 1, and RAID 10
USB
USB
CPU:
1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
2. 1 x USB 3.2 Gen 1 port on the back panel
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x M.2 Socket 3 connectors
4. 4 x SATA 6Gb/s connectors
5. 1 x CPU fan header
6. 1 x water cooling CPU fan header
7. 3 x system fan headers
8. 1 x CPU cooler LED strip/RGB LED strip header
9. 2 x addressable LED strip headers
10. 2 x RGB LED strip headers
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
17. 1 x Clear CMOS jumper

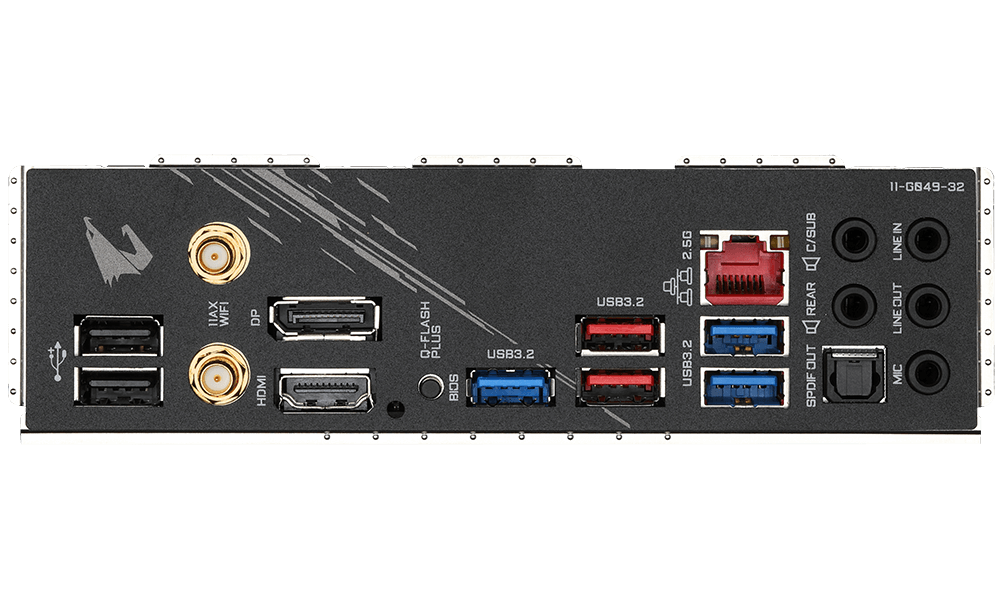

Back Panel Connectors
Back Panel Connectors
1. 1 x DisplayPort
2. 1 x HDMI port
3. 2 x SMA antenna connectors (2T2R)
4. 2 x USB 3.2 Gen 2 Type-A ports (red)
5. 3 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x Q-Flash Plus button
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks
I/O Controller
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8125 Gaming LAN Bandwidth Control Utility
Operating System
Operating System
1. Support for Windows 10 64-bit
Form Factor
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Bildet kan avvike fra produktet. Vi tar forbehold mot trykkfeil og endringer av priser og spesifikasjoner uten varsel.
