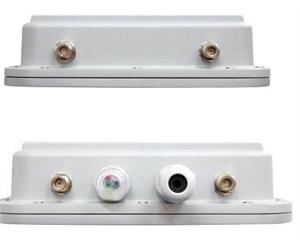

Alfa Network MatrixPro Wireless Access Point (MatrixPro)
Alfa Network MatrixPro Wireless Access Point (MatrixPro)
Alfa Network MatrixPro Wireless Access Point (MatrixPro)

Alfa Network MatrixPro Wireless Access Point

1 272,-
ekskl. mva
4 stk Lokalt lager (sendes normalt samme dag)
1 272,-
ekskl. mva
Frakt fra 71,20
100% norsk nettbutikk
Varenr.: MatrixPro
EAN: 7072823103490
Beskrivelse

Alfa Network MatrixPro Wireless Access Point

The MatrixPro is a dual-band concurrent outdoor turnkey solution. It operates on 2.4 GHz and 5GHz supporting 802.11a/b/g/n MIMO 2x2 standard allowing to cover large area networks and provide intelligent broadband services for users. With WDS point to point and WDS point to multi-point wireless bridge to save infrastructure investments. Supporting Gigabit 802.3af PoE allow MatrixPro to be powered by a PoE switch remotely.

Software Features

Wireless

  • Operation modes: AP mode, WDS Point to Point, WDS Point to Multi-Point
  • VAP support up to 16 SSIDs
  • Transmit power adjustable
  • IEEE 802.11h DFS/DFS2 and automatic TPC
  • Traffic Control for each SSID
  • Dynamic Channel Selection for noisy environment
  • Rate Selection to disable low data rate access
  • Client connection preemption ( n> ag >b) in case service capability is full
  • Auto-Channel Selection

Security

  • WEP 64/128-bits
  • WPA / WPA2
  • WPA / WPA2 (PSK) over WDS
  • Secure SSH, Telnet, SSL, HTTPS
  • Access control list
  • RADIUS authentication
  • EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, EAP-SIM, EAP-AKA
  • SSID broadcast disable

Network Management

  • IPv4 and IPv6 dual stack support
  • Industrial CLI, Telnet, SSH, HTTP and HTTPs
  • SNMP V1, V2, V3
  • Software upgrade by TFTP, FTP or HTTP
  • Configuration file backup and restore by TFTP or FTP
  • System Information – AP status, Station status, event logs
  • Dual Image
  • SNTP
  • Scheduling Rebooting
  • Radius Accounting

 Specifications


Hardware Spec.
  • CPU: Atheros AR9344 ( 560MHz)
  • Standards:
    • IEEE 802.11a/b/g/n 2.4GHz and 5GHz
    • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    • IEEE 802.3af PoE
    • IEEE 802.11h
    • WiF Multimedia (WMM)
    • Wireless Distribution System (WDS)
  • Interface:
    • 1x 10/100/1000Base-T Gigabit PoE port
    • 2x System LED
    • 1x Reset Button
    • 2x 2.4GHz N type Connector
    • 2x 5GHz N type Connector
  • Flash / SDRAM: 16M/64M
  • Temperature: -40°C ~ 70°C
  • Humidity: 5%~95% (Non-condensing)
  • Power: 802.3af Standard PoE
  • Power Consumption: 10.56W
  • Dimension: 269 x 239 x 68 mm
  • Weight: TBD
  • Enclosure: IP67 waterproof certificated

Radio Spec.

  • Frequency:
    • 2400 ~ 2485 MHz
    • 5150 ~ 5825 MHz
  • Data Rates:
    • 802.11b: up to 11 Mbps
    • 802.11a/g: up to 54 Mbps
    • 802.11n: up to 300 Mbps
  • TX Power:
    • 2.4 GHz: 27 dBm +/- 2 dBm
    • 5 GHz: 27 dBm +/- 2 dBm
  • RX Sensitivity:
    • 1 Mbps: -96 (2.4 GHz)
    • 6 MBps: -96 (2.4 GHz); -95 (5 GHz)
    • 11 Mbps: -93 (2.4 GHz)
    • 54 Mbps: -81 (2.4 GHz); -81 (5 GHz)
    • MCS 0: HT20: -96, HT40: -92 (2.4 GHz); HT20: -95, HT40: -92 (5 GHz)
    • MCS 7: HT20: -78, HT40: -75 (2.4 GHz); HT20: -78, HT40: -74 (5 GHz)
    • MCS 15: HT20: -75, HT40: -71 (2.4 GHz); HT20: -74, HT40: -70 (5 GHz)
