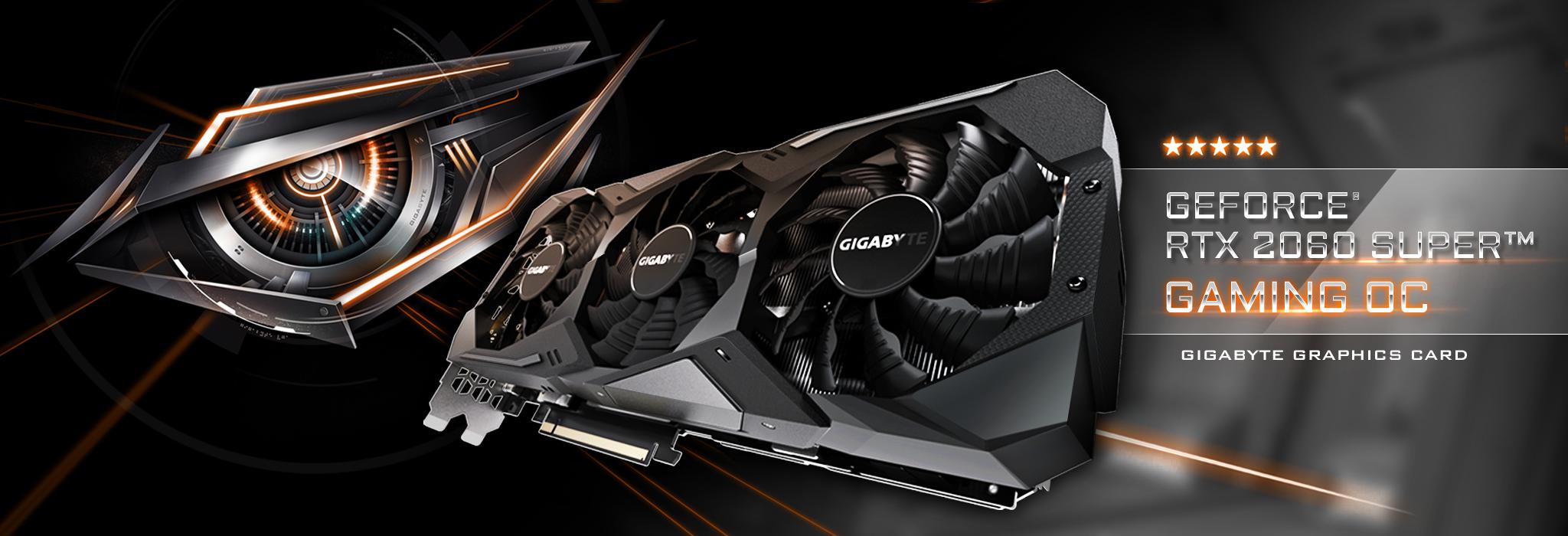

Gigabyte GeForce RTX 2060 SUPER GAMING OC
"When we started this review we said this card should easily be worth the extra $20 it costs over reference cards. After our testing we would definitely have to agree with that. First you get a very nice overclock up to 1815 MHz (vs 1650 MHz reference). This is one of the largest overclocks that we’ve seen for a 2060 Super and is definitely going to give you a few extra frames in games.
Next Gigabyte has outfitted the card with their triple-fan WindForce 3X cooler. It kept the card under 70C most of the time and was very quiet in doing so. Even during our load test the fans could barely be heard. The fans will also turn off when the card is not under load, which is great for noise as well as power consumption. I also like that with the design of the WindForce 3X cooler they did not make the card more than 2 slots. We’ve seen many 2.5-slot cards and Gigabyte is able to pack in a 3-fan cooler into a true 2-slot design." - ThinkComputers.org
Les hele testen her.
Powered by GeForce® RTX 2060 SUPER™
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 – synchronize with other AORUS devices
Metal Back Plate
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipes maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 5+2 power phases)
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
